Crawford manufactures a diverse range of modular, multiple chambered, controlled air, solid waste thermal oxidizers (incinerators), engineered for the unique demands of a wide array applications. Designed specifically to accommodate environmentally responsible, safe and effective solutions, our systems incorporate advanced combustion control technologies providing controlled primary chamber combustion achieving typically over 95-98% volume reduction to a safe, sterile ash. Advanced, controlled air secondary combustion chambers provide efficient, turbulent thermal oxidation of combustion gases, with over 2 second retention, standard, for environmentally safe stack exhaust to atmosphere.
With capacities ranging from 15–2000 lbs/br (7-900 kg/hr). we offer system to address a wide array of effective solutions for solid & liquid waste disposal as well as pathological/incineration systems, with custom designs available to meet unique application demands.

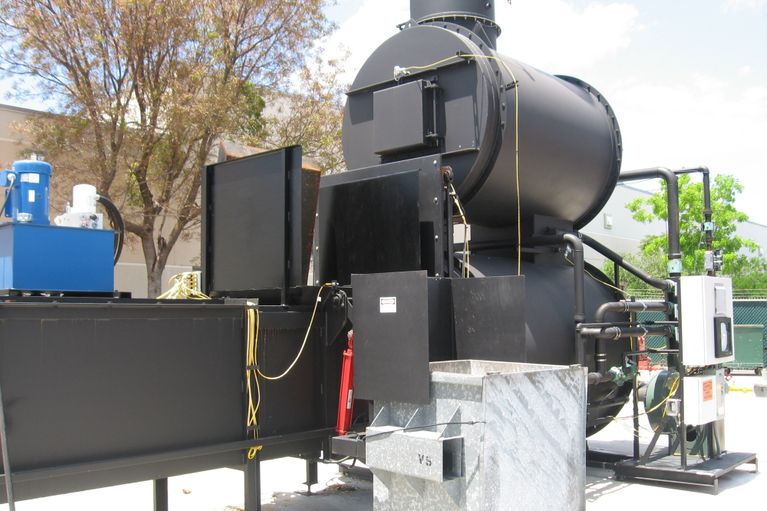

Incineration Systems can be configured for manual charging, batch cycle operation or with continuous automated with hydraulic ram loaders, automatic stoking and automatic ash removal systems to meet a wide range of operational needs.
Wide Applications: Medical waste, Hazardous waste, Municipal waste, Industrial waste, both solid and liquid waste incineration…
Model EPA 0.3
Provides .3 MMBtu/hr combustion capacity: 30-50 lb/hr (14-23 kg/hr) of average HHV of 5000-8500 Btu/lb wastes
Batch Only Operation: 9-10 ft3 (208 L) per 4-6 hr. (Ships skid mounted & fully assembled)
Model EPA 0.5
Provides .5 MMBtu/hr combustion capacity: 55-85 lb/hr (25-39 kg/hr) of average HHV of 5000-8500 Btu/lb wastes
Batch Operation: .75 yd3 (.55 m3) per 4-6 hr. batch / Intermittent Feed: .5 yd3/hr (.38 m3/hr) up to 24 hrs/day
Model EPA 1.0
Provides 1.0 MMBtu/hr combustion capacity: 140-200 lb/hr (64-90 kg/hr) of average HHV of 5000-8500 Btu/lb wastes
Batch Operation: 1.95 yd3 (1.5 m3) per 4-6 hr. batch / Intermittent Feed: .73 yd3/hr (.56 m3/hr) up to 24 hrs/day
Model EPA 2.0
Provides 2.0 MMBtu/hr combustion capacity: 210-320 lb/hr (95-145 kg/hr) of average HHV of 5000-8500 Btu/lb wastes
Batch Operation: 2.6 yd3 (2 m3) per 4-6 hr. batch / Intermittent Feed: 1.25 yd3/hr (.95 m3/hr) up to 24 hrs/day
Model EPA 2.2
Provides 2.2 MMBtu/hr combustion capacity: 260-400 lb/hr (118-180 kg/hr) of average HHV of 5000-8500 Btu/lb wastes
Batch Operation: 3 yd3 (2.3 m3) per 4-6 hr. batch / Intermittent Feed: 1.5 yd3/hr (1.15 m3/hr) up to 24 hrs/day
Model EPA 3.0
Provides 3.0 MMBtu/hr combustion capacity: 375-625 lb/hr (170-284 kg/hr) of average HHV of 5000-8500 Btu/lb wastes
Batch Operation: 5 yd3 (3.8 m3) per 4-6 hr. batch / Intermittent Feed: 4 yd3/hr (3 m3/hr) up to 24 hrs/day

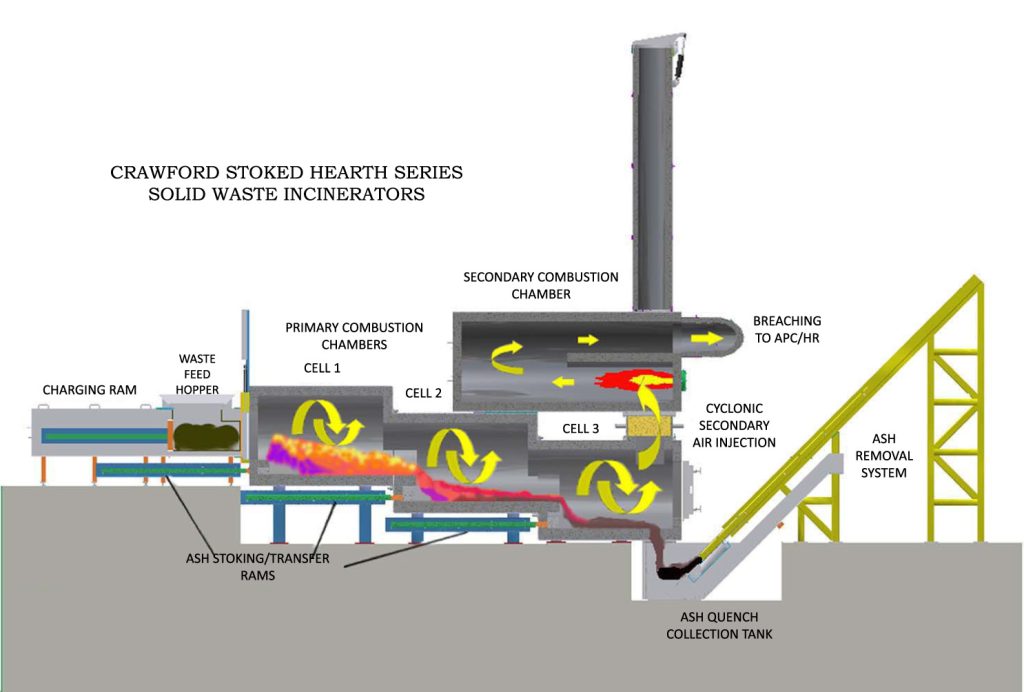

High Production Continuous Feed Stepped Hearth Systems

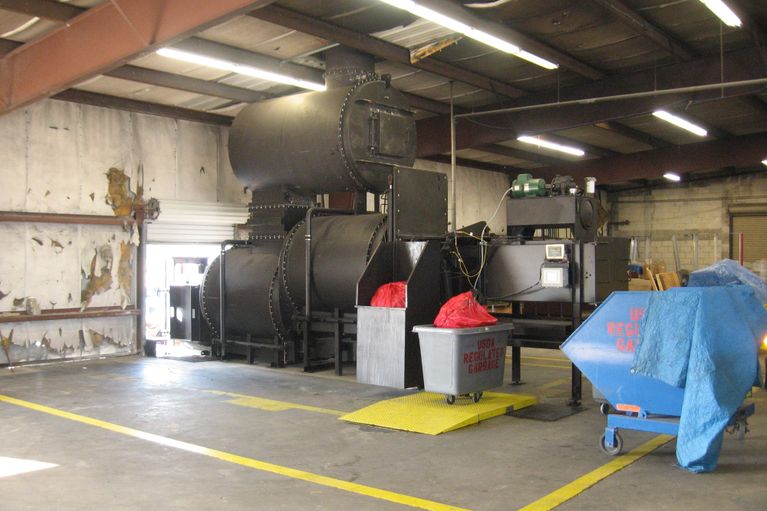

Stepped Hearth primary combustion chamber systems with fully automatic continuous loading/feeding, internal ash rams stoking and ash discharge/collection systems to provide continuous feed operation. Systems available to process from 3 cu. yd. up to 6 cu. yd. per hour of mixed waste streams with an average gross HHV of 5000-8500 Btu/lb.
All type incinerators will be supplied with emission treatment systems to meet any emission standards as requested. The systems including emission treatment and continuous emission monitoring system (CEMS)
Emission treatment system can be with dry technology or wet srubber, heat recovery…
